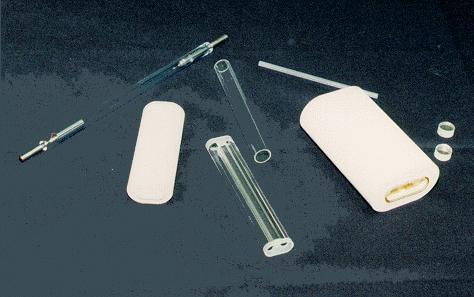

Components & Accessories

Flash Lamp, Base Plate, Laser Rods and Laser Optics, Trigger Transformers

Flash Lamps

Marysol Technologies offers a series of high performance flash-lamps optimized to operate in conjunction with the company's pump cavities product line. The lamps are shipped preconditioned for low trigger and quiet simmer operation. Standard lamps have cerium fused silica envelope. Other materials, gas and pressure other than specified, available upon request.

Flash-Lamps
Part# Bore
(mm)
OD
(mm)
Arc-length
(inches)
Gas Pressure
(Torr)
K0
(Ω/Amp2)
4300X (K) 4 5 2.4 450 (700) Xe (Kr*) 20.5 (18.1)
4350X (K) 4 5 2.9 450 (700) Xe (Kr*) 24.8 (21.9)
4400X (K) 4 5 3.4 450 (700) Xe (Kr*) 29.1 (25.7)
4450X (K) 4 5 3.9 450 (700) Xe (Kr*) 33.4 (29.5)
4500X (K) 4 5 4.4 450 (700) Xe (Kr*) 37.6 (33.2)

5300X (K) 5 6 2.4 450 (700) Xe (Kr*) 16.3 (14.4)
5350X (K) 5 6 2.9 450 (700) Xe (Kr*) 19.6 (17.3)
5400X (K) 5 6 3.4 450 (700) Xe (Kr*) 23.0 (20.3)
5450X (K) 5 6 3.9 450 (700) Xe (Kr*) 26.4 (23.3)
5500X (K) 5 6 4.4 450 (700) Xe (Kr*) 28.6 (27.8)
* Including 10% Xe to lower triggering voltage and increase life time.

Base Plate

A base plate as specified, is optionally offered with our laser cavities.

It is made of 6061T6-grade anodized Aluminum.

It can be reconfigured on a special request basis to fit your special needs.

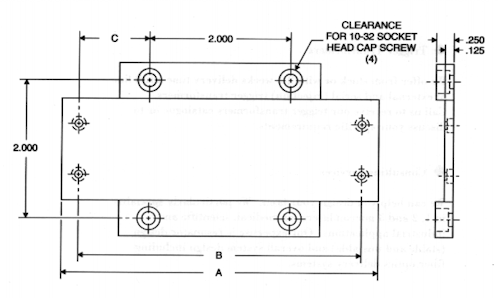

Mechanical Drawing
Base Plate - Single
Part# Rod Length
(inches)
A
(inches)
B
(inches)
C
(inches)
B-3S 3 4.52 4.025 1.01
B-3.5S 3.5 5.02 4.525 1.26
B-4S 4 5.52 5.025 1.51
B-4.5S 4.5 6.02 5.525 1.76
B-5S 5 6.52 6.025 2.01

Laser Rods and Laser Optics

As an additional service to our customer we also stock a large selection of high quality rods and laser optics for immediate delivery.

We offer Nd:YAG, Cth:YAG, Er:YAG and Nd:YALO and laser optics for 1.06, 2.14 and 2.94 micron. Substrate materials available are UV and IR grade fused silica, BK-7 and CaF2.

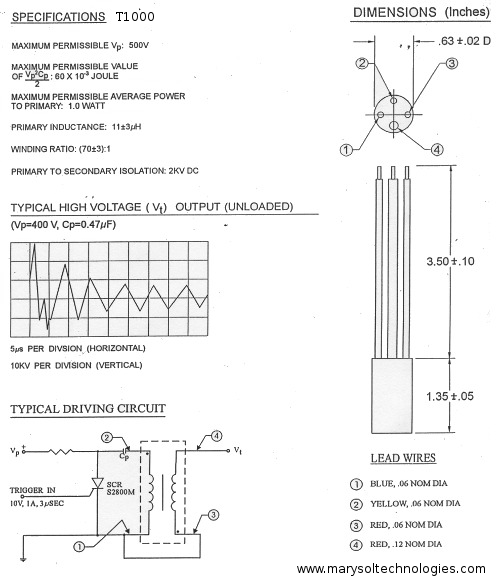

Trigger Transformers

We offer from stock or with 2-3 weeks delivery time an external trigger transformer optimized to trigger our cavities.

Schematic
