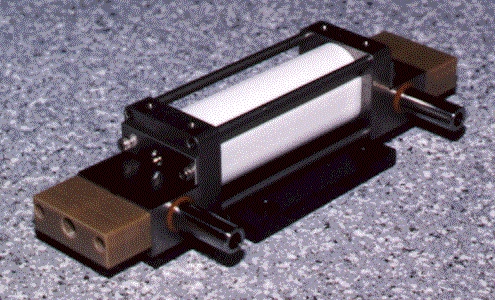

1520 Series - Pump Cavities
1520-Series diffuse pump cavities are designed using unique proprietary technology which allows UV and/or 1.06 micron suppression by selectively doping the reflector material for the specific application. The company offers a series of interchangeable reflector assemblies as specified. This model incorporates Titanium end caps which is recommended for high energy applications.
Maximum power capabilities are 800-1300 watt depending on size and operating conditions. A large selection of standard sizes are available as indicated. Customized configurations available on request. This Series should be considered for use with high to medium gain materials such as Nd:YAG, YAP, YSGG, GSGG, etc.
| 1520-Series Cavities | ||||||
| Part # | Rod Size (mm x inches) |
A (inches) |
B (inches) |
C (inches) |
Lamp** | Base Plate** |
| 1520T-4-3 | 4 x 3 | 5.025 | 0.885 | 4.025 | 4300X (K) | B-3S |
| 1520T-4-3.5 | 4x 3.5 | 6.025 | 0.885 | 4.525 | 4350X (K) | B-3.5S |
| 1520T-4-4 | 4 x 4 | 6.525 | 0.885 | 5.025 | 4400X (K) | B-4S |
| 1520T-5-3 | 5 x 3 | 5.525 | 0.885 | 4.025 | 4300X (K) | B-3S |
| 1520T-5-3.5 | 5 x 3.5 | 6.025 | 0.885 | 4.525 | 4350X (K) | B-3.5S |
| 1520T-5-4 | 5 x 4 | 6.525 | 0.885 | 5.025 | 4400X (K) | B-4S |
| 1520T-5-4.5 | 5 x 4.5 | 7.025 | 0.885 | 5.525 | 4450X (K) | B-4.5S |
| 1520T-5-5 | 5 x 5 | 7.525 | 0.885 | 6.025 | 4500X (K) | B-5S |
| 1520T-5-3L | 5 x 3 | 5.525 | 0.908 | 4.025 | 5300X (K) | B-3S |
| 1520T-5-3.5L | 5 x 3.5 | 6.025 | 0.908 | 4.525 | 5350X (K) | B-3.5S |
| 1520T-5-4L | 5 x 4 | 6.525 | 0.908 | 5.025 | 5400X (K) | B-4S |
| 1520T-5-4.5L | 5 x 4.5 | 7.025 | 0.908 | 5.525 | 5450X (K) | B-4.5S |
| 1520T-5-5L | 5 x 5 | 7.525 | 0.908 | 6.025 | 5500X (K) | B-5S |
| 1520T-6-3L | 6 x 3 | 5.525 | 0.908 | 4.025 | 5300X (K) | B-3S |
| 1520T-6-3.5L | 6 x 3.5 | 6.025 | 0.908 | 4.525 | 5350X (K) | B-3.5S |
| 1520T-6-4L | 6 x 4 | 6.525 | 0.908 | 5.025 | 5400X (K) | B-4S |
| 1520T-6-4.5L | 6 x 4.5 | 7.025 | 0.908 | 5.525 | 5450X (K) | B-4.5S |
| 1520T-6-5L | 6 x 5 | 7.525 | 0.908 | 6.025 | 5500X (K) | B-5S |

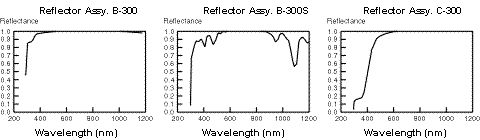

| 1520-Series Reflector Assembly | ||
| Part# | UVcut-off (nm) |
1.06 Micron Suppression |
| B300 | 285 | No |
| B300S | 310 | Yes |
| C300 | 400 | No |

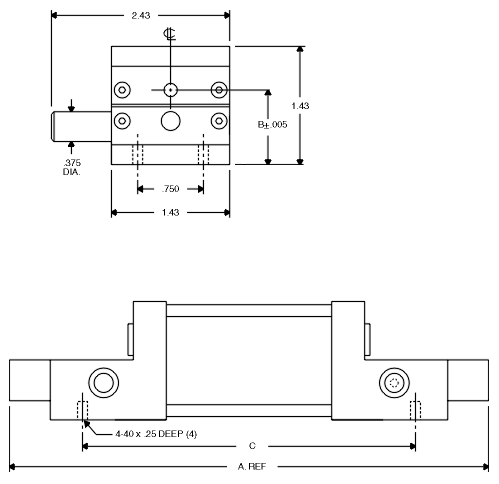

1520 Series Schematic

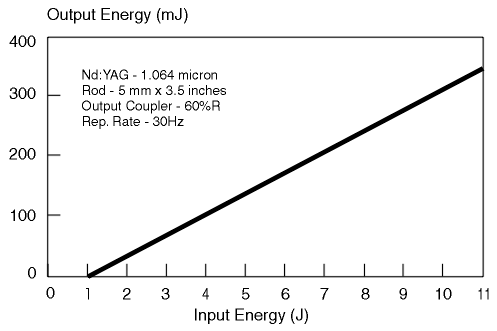

1520-Series Reflector Assy. C300 (Typical Performance)

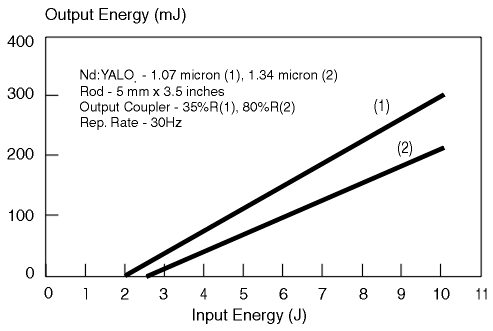

1520-Series Reflector Assy. B300 (Typical Performance)
