50 Watt Er:YAG 50E - Resonator Module

Specifications
Wavelength: 2.94 µm
Maximum Output Energy: 3.5 J/pulse
Output Power (15 Hz): 50 Watt
Maximum Repetition Rate: 25 Hz
Beam Diameter: 5 mm
Typical Beam Divergence: 20 mrad (at full power)
Pulse Length: 200-300 µsec
Typical Dimensions: 20 x 3 x 3 inches
Typical Weight: 4.5 lb.
Input Requirements
Maximum Input Energy: 110 J/pulse
Maximum Input Power: 1.6 kW
Typical Pulse Length (PFN): 200-400 µsec (100 µF, 100 µH)
Flow Rate (Water): 1.5 GPM (65-100 °F)
System Pressure: Approximately 40 psi

50W Er:YAG 50E Schematic

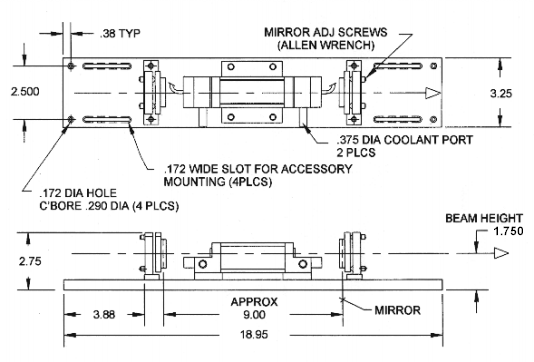

Mechanical Drawing of 35E Watt Er:YAG

50E Typical Performance

Performance Chart of 35E Watt Er:YAG

C=100 µF, 15 Hz, L=100 µH, 1.8 GPM, 27 °C
