30 Watt Er:YAG 30E - Resonator Module

Specifications
Wavelength: 2.94 µm
Maximum Output Energy: 2 J/pulse
Output Power (15 Hz): 30 Watt
Maximum Repetition Rate: 30 Hz
Beam Diameter: 4 mm
Typical Beam Divergence: 15 mrad (at full power)
Pulse Length: 200-300 µsec
Typical Dimensions: 20 x 3 x 3 inches
Typical Weight: 4.5 lb.
Input Requirements
Maximum Input Energy: 90 J/pulse
Maximum Input Power: 1.4 kW
Typical Pulse Length (PFN): 200-400 µsec (100 µF, 100 µH)
Flow Rate (Water): 1.5 GPM (65-100 °F)
System Pressure: Approximately 40 psi

30W Er:YAG-Model 30E Schematic

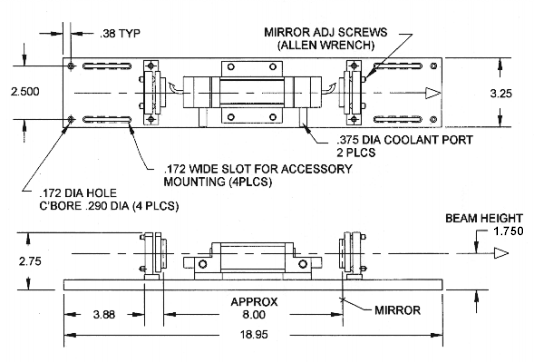

Mechanical Drawing of 25 Watt Er:YAG

30W Er:YAG-Model 30E Typical Performance

Performance Chart of 25 Watt Er:YAG

C=100 µF, L=100 µH, 80%R, 1.8 GPM, 27 °C
