40 Watt Cth:YAG-Model 40H

Specifications
Wavelength: 2130 nm
Maximum Output Energy: 3.5 J/pulse
Output Power @ 12 Hz: 40 Watt
Maximum Repetition Rate: 20 Hz
Minimum Repetition Rate: 7 Hz
Beam Diameter: 4 mm
Typical Beam Divergence: 20 mrad
Pulse Length: 200-300 µsec
Typical Dimensions: 20 x 3 x 3 inches
Typical Weight: 4.5 lb.
Input Requirements
Maximum Input Energy: 150 J/pulse
Maximum Input Power: 1.6 kW
Typical Pulse Length: 200-300 µsec
Flow Rate (Water): 1.7 GPM (65-75 °F)
System Pressure: Approximately 40 psi

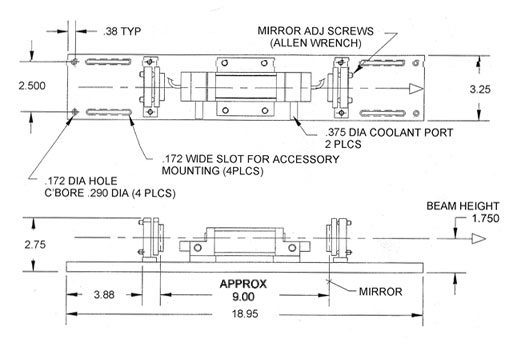

40H Schematic

Typical Performance

40H Typical Performance

Typical Performance
