2700 Series - Laser Cavities Dual Lamp

The 2700-Series includes high efficiency, dual lamp pump cavities for high energy applications. The design is suitable for use with Ruby, Alexandrite, LiSAF Nd:YAG, Nd:Glass, etc. The design is flexible and each cavity will be customized to adapt different size rods and lamps. The cavity is placed on an insulating plate/coolant manifold to accommodate serial or external trigger of the lamps. Modifications of the internal design are available for increased efficiency, power capacity, etc, as required in your specific application. Multiple lamp designs are also available.

2600-Series Laser Cavities-Dual Lamp (Rod-1/4 x 4 inches)

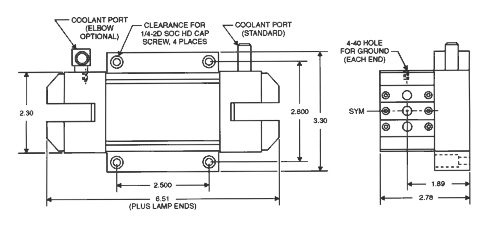

Schematic
